Exceptional Mini Proportional Joysticks Mean Independence Regained

Power wheelchairs can provide clients with independent mobility. However, determining how a client can physically drive the chair can be challenging. A little ingenuity, thinking outside of the box, an alternative drive control, and the proper mounting system can change someone's life. For this blog post I reached out to my Sunrise Medical colleague and industry veteran Robert Norton to provide his insight on selecting the ideal mini proportional joystick.

It's hard to underestimate what regaining even the smallest amount of independence means to someone. A couple of years ago I was reminded just how much of an impact the proper drive control and mounting system can have on an individual when I was introduced to a young man who we'll call "John." John was a 19-year-old male diagnosed with cerebral palsy who had been sitting in his house for roughly three years in a manual tilt-in-space wheelchair. He reportedly had driven a power wheelchair successfully when he was younger, but due to changes in his posture he could no longer access a "standard" joystick or any of the other alternative input devices he had been exposed to.

The evaluation team and I determined very quickly that cognitively John was still capable of driving; however his posture presented many obstacles. John's back was curved so severely that his head did not make contact with the headrest. Instead, his head was positioned at about a 45-degree angle to the seat, which placed it near the back post and his visual orientation was sideways. In light of the fact that John did not have a great deal of head movement in this position, we decided his cheek was the best access point to provide him with the highest opportunity for success.

Due to John's limitations we deduced that a mini proportional joystick would likely provide the most appropriate options. Mini proportional joysticks are a great alternative when the user presents with very limited movement and/or the joystick needs to be placed in a manner that a standard joystick simply cannot accommodate. The first two joysticks that came to my mind as potential options were the MicroPilot and MicroGuide from Switch-It. Even though these joysticks are similar in many ways, they each offer unique features.

The MicroPilot offers a zero-throw option. This means that the joystick does not move when activated thus allowing for full proportional control even with very limited input. The MicroGuide is also a very small-bodied joystick, but it has a small range of throw. This has proven to be very helpful for an individual who requires a minimal activation area and benefits from the feedback that joystick movement provides. I have seen great success with both of these joysticks for clients who have limited movement and/or strength for joystick activation resulting from diagnoses such as ALS, incomplete quadriplegia, muscular dystrophy, and cerebral palsy.

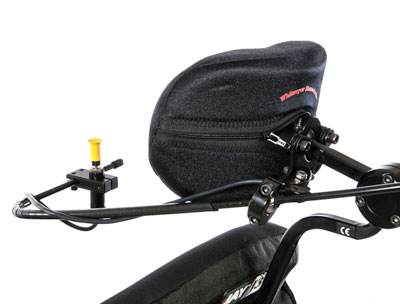

MicroPilot joystick in a chin control configuration

Both the MicroPilot and the MicroGuide are offered with multiple "off-the-shelf" mounting options. They work very well for hand control when mounted in a small tray such as the Bullet Tray from Switch-It or simply by itself placed with at the front edge of the armrest. Either of the hand mounting options can be moved to a midline position if needed. Both of the controls are also excellent options to be placed as a chin control. I have found the MicroPilot to perform especially well for this use. Due to the zero throw, the user does not find himself straining his jaw to chase the joystick around, as it stays in place. The chin placement can be accomplished either through a BDN (Hames) harness or off a headrest swing-away boom. In addition to off-the-shelf mounting options, Switch-It offers you the ability to work with our team to design a mounting system that will meet the needs of your clients.

In the case of John with the MicroGuide, we were able to mount the drive control off of the back cane and place it next to John's cheek. With a slight head nod, John was able to activate forward and reverse. Before long, he had figured out how to manipulate the joystick for left and right as well. The MicroGuide gave him the feedback he needed due to no visual contact with the joystick and the small size allowed it to be placed exactly where he needed it.

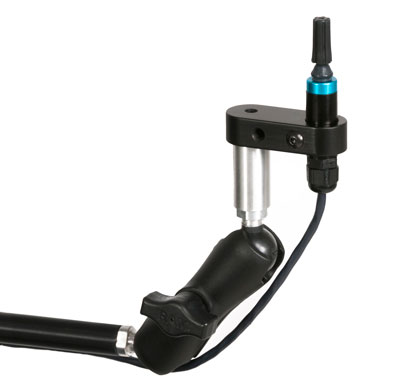

MicroGuide joystick

This client realized great success with a very unconventional mounting system and the MicroGuide. The Switch-It MicroPilot and MicroGuide are two exceptional mini proportional joysticks that have improved the lives of many individuals.

There are many other success stories where individuals have been given full proportional control and thus independence in accessing their environment. Do you know one? If so, please share it below in the comment section.

Robert Norton

Robert Norton is a RESNA-certified Assistive Technology Professional (ATP) with over 25 years of experience in the complex rehabilitation technology (CRT) industry. He joined the Sunrise Medical family in 2015 as a part of the Switch-It, Inc. acquisition and is currently the Director of Sales, Specialty Controls. Prior to working for an equipment manufacturer, Robert worked as a CRT supplier. Robert's favorite part of his job is watching clients increase their independence via power mobility.

Angie Kiger

Thank you for reading our blog! We love hearing from you, so please do not hesitate to reach out to us. We encourage you to leave a comment below.

Always remember at the end of the day, your client is your number one priority!
- Angie

Follow Angie on Twitter @ATigerKiger


Published: 15/01/2018
